Digital manufacturing

Holistic process planning, connected solutions and production analyses; digitalisation is prompting a staggering change in the manufacturing industry.

The topic of a ‘lunch and learn’ event held by Okuma and Sandvik Coromant was ‘Digital Factory’, which took place on 9 July at the Okuma Technical Centre South in Langenau, Germany. The programme included expert presentations and live demonstrations of industry 4.0 technologies on the latest CNC machine tools.
For further information

Tecomet gets a hold on productivity

When Tecomet, a manufacturer of products and services for the medical device, aerospace and defence sectors, needed a secure and flexible work-holding solution for its machine shop, the company turned to Hainbuch and its Manok stationary clamping system.

At the company’s Sheffield facility, where component precision, quality and surface finishes are critical, Hainbuch provided the most suitable and flexible solution. Tecomet’s first investment in Hainbuch equipment was the 65 mm Manok stationary chuck for its DMG DMU 50 machining centre.
Product manager Stephen Jackson says: “What we used to do here is hold the job in a two-jaw chuck, but this gave us a lot of issues with vibration and positional accuracy. So, we opted for the Manok 65 from Hainbuch and it solved our issues. The positional accuracy is spot-on and there are no more scratches or issues with surface finish. Furthermore, it’s saved a lot of reworking and secondary finishing.
“The rigidity of the Manok has improved our tool life dramatically and reduced our tooling costs,” he continues. “Furthermore, we’ve been able to push the tools harder and run the machines faster than before, and this has improved our cycle times while reducing tool consumption. On a particular femoral knee job, we’re looking to maintain a precision level of ±10 µm. One key point is that we have numerous five-axis machine tools on-site and we can interchange the Hainbuch system, easily placing it on another machine if necessary. It’s simple, quick and easy to use, and the support from Hainbuch has been very good.”
Following the success of the Manok, Tecomet purchased a pneumatic fixture plate with six Hydrok 42mm collet chucks from Hainbuch.
For further information

Schunk module for automated machine loading

The Vero-S NSE-A3 138 automation module from Schunk is specifically for automated machine-tool loading, as well as applications in handling, assembly and automation technology.

For process-reliable workpiece and clamping device changes, the automation component is equipped with a blow-off function, which cleans the interface surface during changeover. In addition, a spring-actuated cone seal prevents chips or dirt from penetrating the interface.
Pull-down force of 8,000 N or 28,000 N, along with activated turbo function and high dimensional stability of the module body, benefit the rigidity of automated quick-change solutions. Thus, even high tilting moments and shear forces can be reliably absorbed. Depending on the application, the modules can be combined in any quantity.
Centring inserts featuring flexible elements ensure positional orientation with a high repeat accuracy (<0.005 mm) and process reliability in automated operations, says Schunk. Due to the conical fitting, the clamping pins can also be joined into the modules eccentrically, simplifying the process. The actual clamping is done without any external energy supply via spring force; it is form-fit and self-retaining. This design attribute means that workpieces remain safely clamped in the case of a sudden drop in pneumatic pressure. A pneumatic system pressure of 6 bar is enough to open the module. When the modules are used individually, a standard, integrated, anti-twist protection device ensures a stable position. By means of the integrated media transfer unit, fluids with permissible system pressures of up to 300 bar can be transferred. As a part of the Vero-S modular system, the automation module benefits from a variety of combination options, from standard plates to Schunk Tandem clamping-force blocks, to mechanical vices from the company’s Kontec series. For further information

New faces at ACE

A trio of strategic appointments is helping a Telford precision manufacturing specialist deliver a 40% boost in sales.

Advanced Chemical Etching (ACE) has strengthened its management team by recruiting Carwyn Howells and Peter Kirwan as production manager and head of plant and facilities respectively, with the duo key to managing volume increases and capitalising on a £500,000 investment drive in new inspection equipment and pre and post-cleaning machines. They will be joined at the Hortonwood firm by Ian Radford, who brings years of experience in the aerospace sector to his role as quality manager.
For further information

Tornos bites into productivity and innovation

Before he became a practicing dentist – and even longer before his entrepreneurial spirit gave rise to PartMaker, a West Heidelberg, Australia-based precision part manufacturing firm – native Australian Dr Chris Hart had already fallen in love with Switzerland. Swiss dental training improved his scope of practice and now, Tornos’ Swiss-made single-spindle lathes are helping him redefine Australian manufacturing.

An experienced prosthodontist specialising in pioneering practical and cost-effective solutions, Hart has made a name for himself as an innovator and leader in his profession. Once he has gained his Bachelor of Dental Science from the University of Melbourne, Hart built up expertise in a variety of patient care environments by working as a dentist. After earning his Master of Dental Science degree, he was selected to be part of an international team of implantology scholars, an accolade that took him to the University of Bern in Switzerland, where he was mentored by world-renowned faculty member Professor Daniel Buser, both at the university’s dental medicine clinic (ZMK) and its department of surgery.
Upon returning to Australia and working in both private practice and hospital settings, Hart discovered that he could not find adequate prostheses to serve the functional needs of oncology patients. So, he decided to make those parts himself. Thus, PartMaker was born in 2012. Describing himself as ‘an engineer trapped in a dentist’s body’, Hart’s entrepreneurial spirit is driven by his passion to make a real difference in the appearance, comfort and confidence of patients.

“Before we started making our own components, we were heavily modifying existing parts,” he states. “That means we were basically butchering really well-made parts in order to remedy simple problems, like patients not being able to open their mouths wide enough to accommodate available screwdrivers.”
The solution was obvious. Hart started making his own parts and instruments.
“Back in 2012, we started making everything with milling machines,” he says. “I even went to night school and earnt a certificate in CNC programming, so I could get a better understanding of manufacturing technology.”
Hart never intended to buy a lathe, but he found that the dental implants and maxillofacial hardware he needed to produce, were beyond the capabilities of simple milling.
“With so many dental parts being too long or too short, and with existing systems going in and out of fashion, I really saw a need for bespoke, custom dental and biomedical parts,” he says.
Implants require turned components, so among PartMaker’s early purchases were a Tornos ENC 264 four-axis lathe and a Tornos Delta 20.

“Being new to Swiss-type turning and CNC machining as a whole, we had a pretty small wish list of parts to make. Peter Staebner at Tornos agent SwissTec Australia was instrumental in helping me get our first few parts made with the Delta 20. I would go into the shop after work and Peter helped me at the weekends, and we got our wish list accomplished.”

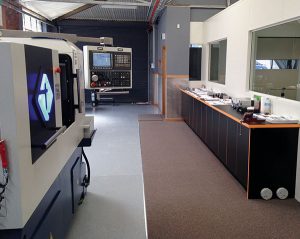

Before too long, Hart saw that Tornos Swiss-type technology opened up a whole world of possibilities. However, even running the Delta 20 all day, the company was limited in the parts it could produce. Enter the simple and ergonomic Swiss GT13, offering easy access to all tool positions and designed to drive the successful production of long and short parts.
“It has six linear axes, so it allows us to make some parts that we can’t produce on the Delta 20, and we can use 99% of our existing programming with the new machine,” says Hart. “The Swiss GT13 is so much easier to use than our old machine.”
Accommodating up to 30 tools, including 12 rotating tools, the Swiss GT13 has a Y axis that increases machining capability in secondary operations and allows some complex workpieces to be produced without reworking.
Hart points out that the new machine is slashing PartMaker’s cycle time on many parts simply because of the additional access it provides: “It’s easier to set up and its cycle times are significantly faster. In fact, because of the easier access, we’re saving 40% in cycle time on a lot of components. I know we’re not using our Swiss GT13 to its fullest capabilities yet, but that’s the goal. It’s already optimising our manufacturing. Now that we have two machines running, our ability to keep on top of orders is significantly improved. It has enough tool positions that we’ve got it set up to produce families of parts for our three main lines.”
Moreover, Hart is impressed with Tornos TISIS communication and programming software: “With TISIS, it’s a lot easier to generate programs for our parts because we’re really just assembling programming modules. The software is easy to use and I estimate that it is saving us 50% in time spent on programming because we’re not writing a new program for every different component to be produced.”
To say that Hart is pleased with his purchase is an understatement. One example, he says, is the “amazing job” the new machine does with an original PartMaker dental abutment featuring a complex taper geometry, external threading and a milled octagon. The component, with its M1.4 thread to a depth of 4 mm through a 1.2 x 1.5 mm deep hexagon, is easily executed with the addition of the Swiss GT13. In fact, PartMaker has become so productive with its Swiss GT13 that Hart has ordered an optional bar feeder.

“We’re achieving results that we thought existed only in technical drawings,” he says. “For the past five years, we’ve been relying on our own homemade bar feeder, but today we’re chewing through the bars a lot faster.”
With Tornos technology, SwissTec expertise and his own ingenuity, Hart looks to the future with confidence: “I have a dream for PartMaker to end up with six Tornos lathes and four milling machines. Of our customers, half are international, from the US, Canada, Taiwan and Mexico. With the increasing uptake of CADCAM in dentistry, dentists are realising the possibilities of what’s available from dental implant companies, so we know the potential for custom machining is there.”
