Pryor joins AMRC

Pryor has become a member of the University of Sheffield’s Advanced Manufacturing Research Centre (AMRC).

As part of being a Tier 2 Member, Pryor has installed an advanced laser marking system at the AMRC’s Factory 2050, the first of its type at the facility. Pryor’s laser will be integrated into a fully automated robotic cell for marking components, to demonstrate part traceability and data capture in production assemblies. The demonstration will involve two robots that will load pen components into the laser cabinet for marking before assembling the parts into a working pen.
For further information

Accuturn invests in CNC milling capability

As part of Accuturn’s growth strategy, the company is expanding its capabilities with the addition of a further Haas Mini Mill to its range of CNC milling and turning machines. Director Nicola Stokes says: “This will enable us to increase capacity for our existing customer base, as well as allow us to expand into new sectors.”

The new Haas Super Mini Mill has a machine table capacity of 914 x 305 mm, and axis travels of 406 x 305 x 254 mm in X, Y and Z. Accuturn’s Super Mini Mill is enhanced with a faster tool changer, faster spindle and higher rapids for improved production and part finish.
In other news at Accuturn, which is based in Norfolk, the company has taken its first apprentice as part of the company’s continued growth and commitment to encouraging young people into careers in engineering and manufacturing.
Joshua Mallett, 16, from Swannington in Norfolk, originally came on work experience from Reepham High School for two weeks. He stayed in touch with the business and, after finishing school, joined as Accuturn’s first engineering apprentice. Mallett is attending City College Norwich for the next two years, on day release, studying for his Mechanical Engineering Level 2. On completion, it is planned he will go on to a third year to complete Level 3.
For further information

Machine tools drive cost savings

Top tier suppliers to the oil and gas sector need to work smarter, quicker and more cost-effectively to not only meet customer demands, but ensure that their own bottom-line margins are maintained and, ideally, improved.

Starrag bei KSB, Pegnitz, 16.1.2017

As part of Starrag’s product ranges, machines from Dörries and Scharmann, in particular, are paying dividends in global oil and gas work. For example, Burckhardt Compression in Switzerland is reducing unproductive times on piston compressors produced using its portfolio of Dörries and Scharmann machines, which are complemented by high levels of automation. In the Netherlands, Mokveld is reducing formerly long machining times, as well as possible relocation errors and certainly costs, by machining its high-pressure control and stop valves complete in a single set-up on a Dörries vertical lathe. Elsewhere in Europe, one-hit machining is benefiting KSB of Germany, with a Dörries vertical lathe minimising unproductive times and replacing two/three conventional machines in the production of pump housings.
In every case, Starrag can easily and cost-effectively ‘modify’ and supply each machine specifically to suit individual requirements.
Manufacturing piston compressors that operate up to 3,600 bar, Burckhardt Compression uses a quartet of Starrag machines – a Scharmann Alpha 1250 M machining centre, a Scharmann Heavyspeed two-ram-type boring mill, a Dörries Contumat VC 2400/200 vertical turning lathe (VTL) and a Scharmann Ecoforce 2 HT4 machining centre – to machine cylinders, cylinder blocks, frames, valve heads and steering rods. Components are produced up to 5.9 m long and weighing 30 tonnes.
According to August Dünki, the company’s director of large part manufacturing: “We especially gain benefits from the use of the Dörries VTL’s additional moveable work table axis [for set-up and/or in-situ workpiece inspection] and have reduced unproductive time via the 72.4 hp Ecoforce 2 HT 4.”
For further information

MTC seeks UK-India partnership

Manufacturing Technology Centre (MTC) chief executive Dr Clive Hickman is spearheading a drive to establish a technology partnership with India.

The far-reaching link-up aims to increase trade, investment, technology and skills transfers between the UK and the sub-continent. Dr Hickman says the potential opportunities are enormous; the UK and India are among the world’s top manufacturing nations with a combined output of around £750bn. A major leadership summit – the India-UK FutureTech Festival – was attended by Dr Hickman in New Delhi last December.
For further information

Precise gripping proven a million times

High quantities, extreme quality requirements and keen competition are shaping the production of injection-moulded parts for the automotive industry. To ensure success when performing this delicate balancing act, Gevelsberg, Germany-based Denk Kunststofftechnik relies on Schunk grippers in its self-designed handling systems.

“Around 60% full automation, and the trend is rising rapidly; we are no typical plastic injection moulders,” states Konstantin Spenst, head of automation technology at Denk. “Automation is the only way to output between 500,000 and well over 2 million parts per year, and check them 100%.
“Precision and verifiability are decisive factors for us,” he adds. “The newer the system, the more steps are monitored. Recently we wrote a chain of 800 steps, but only 30 of them were paths. Everything else was just commands of pneumatic components or queries with alarms.”
Around 60% of the range was operator messages such as “end position not reached”, “part lost” or “part not correctly mounted”. What is decisive nowadays is that the user receives as much information as possible, because in the case of a malfunction, the reason must immediately be identified. This factor is particularly thanks to the precise monitoring of grippers, as only in this way can damage to the tools be avoided, along with system downtime.

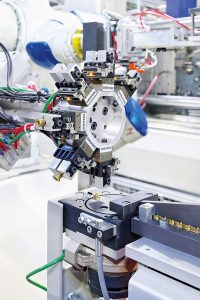

At Denk, all parts are first monitored to see that they are correctly mounted. Presence monitoring is then deployed immediately before mounting the tool; ultimately checking immediately after removal and finally during storage. This methodology is the only way to prevent parts from being lost in the handling process, causing an expensive tool collision.
The gripping systems that are increasingly being conceived, designed and built independently by Denk since the beginning of 2010 are of double significance. Each system must ensure reliable handling, while at the same time facilitating reliable monitoring of the relevant process steps. Historically, the latter had proved to be a challenge, because not all gripping system components available on the market permanently achieve the required level of precision and process reliability, not even the high-end ones.
“With our gripping systems, precise monitoring is very important, as with 1 mm play in the gripper jaws and a closing stroke of 3 mm, reliable monitoring is not possible,” says Spenst. “It repeatedly transpired with grippers from various manufacturers that sensors delivered unreliable results because the play in the jaw guidance was so large. Over the course of time, we have realised that Schunk grippers can be queried very reliably, as they work very precisely.”
The Schunk MPG-Plus grippers for small components are particularly advantageous in this respect.
“For parallel grippers, not only an end point can be queried, but also a centre point, which can be set very easily,” says Spenst. “If a component gets lost, the end switch is set to zero and reports the loss. When handling metal parts, an inductive sensor usually monitors whether, and at what distance to the sensor, a metal inlay is gripped.”
Besides inductive monitoring, the Schunk MPG-Plus miniature gripper can be monitored by integrated and programmable magnetic switches, by means of which a high degree of flexibility can be attained. Compared with similar modules on the market requiring the same input, the gripper produces a significantly higher output – says Schunk – paving the way for ever smaller and more efficient systems.
The high-performance, individually adapted junction roller guide ensures high load bearing capacity of the entire guidance system, minimal wear and a long life span. Components made of special, high-performance aluminium are used internally. In order for engineers to be as flexible as possible in process and system designing, the module can be screwed through and tightened both on the side, as well as the bottom.
“The grippers must be as light and as small as possible,” stresses Spenst. “If I have a heavy gripper, I have to move slower. This costs cycle time and cycle time is real money.”

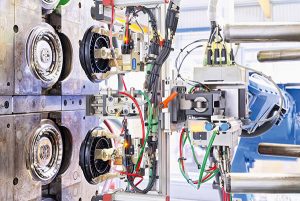

On average, the loss of one second of cycle time costs between €2000 and €4000 each year. To keep warehousing as low as possible, Denk uses the miniature gripper primarily in sizes 40 and 64, in order to dock gripping systems on to the tools in a stable manner when loading. For large strokes, the Schunk KGG 80 two-finger parallel gripper is used. This gripper even allows handling of T-nuts with adhered chips. For larger, round components, Denk uses the Schunk PZN-plus centric gripper, which due to patented multi-tooth guidance and manually ground base jaw guidance, combines a high level of precision with low wear.

For Spenst, the standardisation of the gripping system components is elementary: “We want to keep inventory as low as possible to ensure the universality of our systems, and to react flexibly in the event of damage. When we design grippers with Schunk, we know that we will be able to handle 2 million parts a year for seven years, without losing any precision or having to fit new grippers.”
For normal use without overloading the grippers, these cycle rates can definitely be achieved and sometimes even exceeded. The temperatures in the injection moulding machines are generally non-problematic for Schunk grippers. Only in critical applications do the designers at Denk contact the manufacturer and ask about maximum permissible values.
Despite the high level of gripping systems expertise, it is not possible for Denk to manufacture the module components in-house.
“We could certainly build parallel grippers, but they would cost 20 times as much and would still not achieve the level of quality provided by the Schunk modules,” says Spenst.
After the relaunch of the PGN-Plus-P parallel gripper, Schunk has now transferred the features of its flagship product to the three-finger gripper series. The Schunk PZN-Plus-P centric gripper is now equipped with a permanent lubrication unit in the multi-tooth guidance system which, under normal, clean working conditions, ensures lifelong maintenance-free operation.
With short strokes in particular, the continuous lubrication pockets are said to produce a fast and even distribution of lubricant along the entire multi-tooth guidance contour. By enlarging the supporting dimensions between the six load-bearing shoulders of the patented multi-tooth guidance system, higher moments can be accommodated and thus longer fingers can be used. In order to ensure fit accuracy, each individual base jaw is carefully ground (manually) and fitted to the individual housing. Moreover, the large piston drive area helps to maximise gripping force.
