Tube profiling on flat-bed fibre laser

Bystronic has introduced a rotary axis for processing tube on its ByStar Fiber flat-bed laser cutter, which offers up to 10 kW of power. The new equipment enables users to switch between sheet and tube processing in a few simple steps.

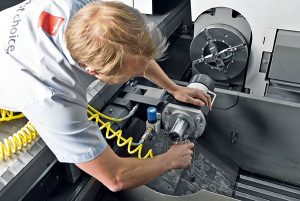

Factory-fitted by Bystronic, the rotary axis, together with retractable tailstock, enables tubes from 30 to 315 mm in diameter (and in a variety of lengths) to be profiled. The operator inserts tube either from the outside through a hatch in the ByStar Fiber’s housing, or directly into the machining area through the sliding door along the side. Part unloading is said to be similarly rapid.
Also supplied is a tube-cutting software module, which is an expansion to the proprietary BySoft 7 programming software. The module allows users to design parts for tube processing, input existing CAD files, perform editing routines and generate cutting plans.
To support fast set-up times for processing a variety of tube profiles, Bystronic has integrated an assistant function into its ByVision user interface. The new function guides users through each operating step via the ByStar Fiber’s touch screen.
For manipulating longer tubes, Bystronic offers a rotary-axis box, akin to a bar magazine on a lathe. This detachable accessory is mounted on wheels and enables tubes up to 3 m long to be fed through the hatch in the machine housing and positioned accurately. With an additional extension box, tubes up to 6 m
in length can be processed.
