Automated sawing, sorting and stacking

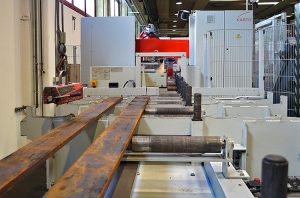

An automatic KASTOtec FC4 bandsaw has led to a three- to four-fold increase in productivity at a family-owned firm in Austria that develops and manufactures solutions for managing torsional vibration in large diesel and gas engines. The company’s product range includes flexible couplings and vibration dampers made from steel and composite, which are typically used in ship propulsion systems, power generation, bulldozers and locomotives.

The saw has been equipped with a robotic system for sorting cut lengths. By connecting the cell to the company’s manufacturing management system, the user is able to keep track of all production data, ensuring reliable, safe, minimally attended operation. Since December 2016, round and flat bar of mainly tempered steel has been sawn to precise lengths on the Kasto machine, as the previous saws struggled to process the difficult-to-cut materials.
Before opting for this solution, the Austrian company’s managers visited Kasto’s headquarters in Achern-Gamshurst, Germany, and were impressed by the technology on offer. They also appreciated the fact that Kasto was able to offer everything from a single source, including an ABB robot with interchangeable magnetic grippers to automate the monotonous and time-consuming task of removing and sorting cut parts and stacking them at four pallet locations.
The saw was also supplied with a magazine that can hold four bars up to 3500 mm long, allowing production to run unattended for extended periods. The KASTOtec receives order data including material type, dimensions and number of cut pieces from the manufacturing execution system (MES), which is linked to the saw via a custom interface.
