For many years, PCE Instruments has been dealing with a wide variety of inspection cameras for all sorts of applications. The product range is continuously expanding with new models that are more compact and easy to use. When it comes to thermal imagers, ever-improving infrared image resolution and camera resolution are among market trends, as evidenced by this latest product release.

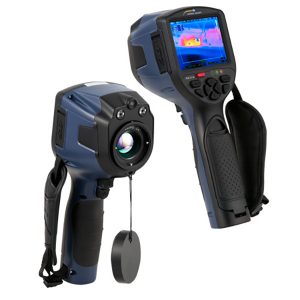

The new thermal imaging inspection camera PCE-TC 34, which complements PCE Instruments’ existing range of cameras, is about to be launched. This thermal imager stands out with its high IR resolution of 640 × 480 pixels, and its camera resolution of 5 megapixels, which is a relatively rare feature in the market.
PCE explains that the device works with an uncooled microbolometer FPA detector and can display temperatures between -20 and +350°C. Accuracy is ±2°C or ±2% of the reading.
The PCE-TC 34 recognises the coldest as well as the hottest spot, namely the hotspot, while the infrared camera has a thermal sensitivity of 0.05°C at 30°C. Further parameter specifications include a 24 × 18° field of view and a spectral resolution of 0.65 mrad. The spectral range is between 7.5 and 14 μm, while emissivity is adjustable between 0.01 and 1.0.
Image frequency on the PCE-TC 34 is 50Hz and the electronic zoom function allows 1 to 8 x zooming. Importantly, images and videos recorded via infrared can be saved to an SD card.
The 3.5” display allows easy viewing of the images and videos directly on the meter, although these can also be transferred to the computer via the USB 2.0 interface and then analysed further by means of software.
For further information www.pce-instruments.com
