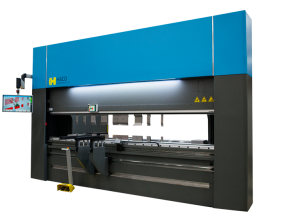

High-accuracy press brake from Haco Kingsland

According to Haco Kingsland, the company’s new PressMaster series hydraulic CNC press brakes feature the full integration of high-level machine, control, software, safety and tooling technology for the benefit of short set-up times, high part accuracy and safe operation without compromising productivity.

The Multi Touch FastBend MT Premium control offers automatic tool search during the part design process, along with instantaneous calculation of bending sequence and NC program. PressMaster press brakes can be optionally equipped with the company’s ‘Smart Tool Locator’ system, which indicates the correct tooling position as well as tools that are active during the bending process.
Lazersafe’s IRIS optical safety guard system guarantees safe operation, controlling the entire area around the top tooling and discontinuing the fast downward movement of the beam instantaneously when detecting any safety hazard in the protected area.
Further features include a new standard tooling system that is said to offer high accuracy and durability. Vertical loading together with novel self-seating and self-aligning characteristics work together to facilitate short set-up times.
The symbiosis of these technologies is designed to provide customers with flexible press brake operation offering short set-up times and components featuring ±0.1 mm dimensional and ±20’ angle precision tolerances.

For further information www.kingsland.com
