Roemheld’s modular systems for facilitating the repositioning or exchange of a die in a power press using mechanically or hydraulically actuated roller or ball bars may now be ordered more quickly and efficiently.

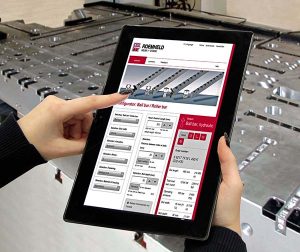

A new online configurator on the company’s website simplifies the process and ensures short delivery times. The configurator is optimised for use on smartphones and tablets, and an app is being developed for Android and Apple devices.
Maximum carrying capacity is 160 kN per metre for the hydraulically-lifted roller bar range, which allows linear movement only. Pistons fitted to the underside raise individual rollers or the entire element by 2 mm, depending on the model, and lower it after successful die positioning. Especially high carrying capacities are provided when the entire bar is lifted.
If a lighter load is being moved, mechanical bars featuring spring preload are available with the rollers or balls slightly protruding. They are pressed into the bars to be flush with the bed when the die is clamped. Ball elements enable the displacement of loads in any direction. Maximum capacity is 66 kN per metre for roller-type bars.
Standard bars are suitable for installation in T-shaped and rectangular slots in the bed, and are available in a variety of lengths, widths, slot depths and centre distances between the rollers or balls. The casing is made of either aluminium or steel; the maximum operating temperature being 250°C.
If there are no slots in a press bed, spring-loaded roller or ball inserts may be used. The inserts are individually placed into drilled holes and provide carrying capacities of up to 2.4 kN per module, with a stroke of up to 3 mm.
For further information www.roemheld-gruppe.de/productconfigurator
